The Basics Guide to Steam System in 2024

Steam systems are commonly used for process heating, power generation, and other applications in industrial facilities. This guide will explore steam system components, design considerations, and operation and maintenance best practices.

Following proper engineering principles allows steam systems to operate efficiently and economically over their service lifetime.

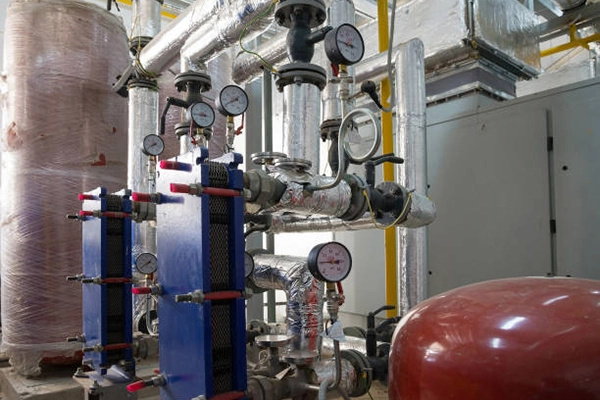

What are steam systems?

A steam system uses a boiler or steam generator to produce pressurized steam distributed through an intricate piping network to various end-use equipment throughout a facility.

What are the components of steam systems?

The variety of key components described below all play crucial roles in creating a complete and fully functional steam system:

Steam boiler

The heart of the steam system is the steam boiler. They or steam generator uses an external heat source to boil water and generate saturated steam. It could produce saturated steam based on an external heat input from burning fuel, electricity, or recovering waste heat.

Firetube boilers have simple cylindrical steel shells with tubes running through the chamber. Hot combustion gases flow through the tubes while water surrounds them.

Watertube boilers have water flowing through tubes heated externally by combustion gases for improved heat transfer.

Electric boilers use electrodes submerged in water to produce steam without combustion.

Based on system demands, the boiler must reliably deliver the required steam quantities at a specified pressure and temperature.

Steam header

The steam header pipe collects the saturated steam produced by the boiler and distributes it to the various steam mains and branches throughout the system. The header dampens imbalances between steam production and demand by acting as a reservoir or buffer volume. Proper header sizing helps maintain steady pressure and compensates for inevitable process demand fluctuations.

This dampening effect allows the boiler to operate most efficiently at a steady high-fire output, only varying to adjust for long-term load changes rather than constantly cycling. The steam header should distribute steam to minimize friction losses. Strategically located valves allow isolation for maintenance. The header must be sized appropriately based on the connected boiler capacity and overall steam system design pressures and flows.

Steam distribution lines

An intricate piping network distributes the steam from the header to end-use equipment. Primary distribution lines branch into successively smaller risers and tracer lines. Pipe diameters and wall thicknesses are chosen to account for pressure losses over sometimes extensive transport distances. Insulation limits energy loss while allowing personnel protection.

Gradually sloped steam mains enable natural condensate draining back to the header or steam traps. Anchoring and expansion loops accommodate thermal expansion and contraction of the piping network. Tracer lines often use flexible hoses and smaller bore piping tailored to the application. Proper materials selection accounts for temperature and corrosion factors.

Condensate return system

Returning condensed steam as boiler feedwater improves efficiency by taking advantage of the latent heat in the condensate. This facilitates a closed-loop steam cycle. A well-designed condensate return system comprising piping, pumps, flash tanks, and receiver tanks enables reliable return of this valuable commodity to the boiler plant.

Feedwater system

This system treats raw make-up water and pumps it to the boiler drum or tanks at the required temperature, pressure, and quantity. It replaces boiler water lost through essential blowdown and skimming operations required to control dissolved solids concentration. The feedwater system also maintains proper boiler water levels for safety and efficiency.

What are the advantages of steam systems?

Steam systems powered the Industrial Revolution and remain integral utilities in industrial facilities even today due to their unique advantages:

• Very high heat transfer efficiency compared to other common heat transfer fluids or gases
• Ability to easily transport massive amounts of energy over substantial distances
• Relatively low maintenance requirements once properly installed
• Proven safe and extraordinarily reliable after more than a century of use
• Readily available and cost-effective installation materials and components

Where are steam systems used?

Some of the most common applications that leverage these advantages by relying on industrial steam systems include:

• Providing process heating for chemical reactors, distillation columns, calciners, dryers, steam injectors, steam stripping, jacketed vessels, and numerous other uses.
• Generating electricity by expanding steam through a turbine coupled to an electrical generator. Often called co-generation or combined heat and power (CHP) systems.
• Steam tracing for freeze protection, viscosity control, or temperature maintenance of pipes and vessels
• Humidification and sterilization processes in food processing, healthcare, cleanrooms, laboratories, etc.
• Driving rotational equipment like steam turbines, expanders, pumps, compressors, and other mechanical drives.

With careful design, skillful operation, and careful maintenance, steam systems offer a unique way to be efficient, practical, and economical. It can be applied throughout industrial manufacturing facilities, chemical plants, refineries, paper mills, hospital complexes, university campuses, or any other large institution with extensive heating needs.

Steam system design considerations

Creating an effective steam system design requires an in-depth analysis of key considerations:

Steam pressure

The distribution pressure largely determines piping diameters, safety protocols, and equipment capabilities. Higher steam pressures allow smaller pipe sizes due to reduced specific volume but may require pressure reduction at end uses. Pressure losses from pipe friction, elevation changes, and equipment pressure drops must be modeled based on flow rates.

Operating pressure affects boiler design parameters like wall thickness. A balance minimizes energy waste from too low pressure and high distribution costs from too high pressure. Pressure affects safety system specifications for relief valves, rupture discs, etc.

Steam piping

Steam mains and branching distribution pipes must have enough capacity for reasonable velocities and minimal pressure drops but not oversized excessively. Adequate condensate drainage slope is needed to avoid waterlogging.

Provisions for expansion and anchoring are vital. Insulated piping prevents energy losses and water hammer risks. Metallic piping needs corrosion allowances and often expansion joints. Key considerations are meeting code-required safety factors and parameters like maximum steam velocities. Proper installation meets slope and support requirements. Materials match design pressures and temperatures for safety.

Condensate management

Effective condensate management requires properly selecting and sizing steam traps throughout the steam system to collect this valuable commodity without allowing live steam passage. Piping slopes facilitate drainage by gravity. Venting accumulated air and gases prevents restrictions.

Returning high-pressure condensate and sometimes flashing to low-pressure steam improves energy recovery. A good balance exists between maximizing returns and the cost of long piping runs. Keeping steam traps in excellent operating condition through testing and preventive maintenance is crucial. Condensate tanks temporarily store returns until pumped back into the boiler.

Feedwater treatment

Treating boiler feedwater is essential. Because raw water contains dissolved gases, salts, and dissolved or suspended solids. So it can cause significant efficiency and reliability issues. Treatment steps like deaeration and ion exchange remove corrosive gases and scale-forming compounds. Adjusting pH chemically minimizes corrosion. Suspended solids are filtered out to avoid carryover and deposition.

Softened water prevents boiler scale. Condensate return improves boiler water quality but may still require polishing. Water chemistry must be continually monitored and adjusted. Treatment programs balance effectiveness and cost. Poor water treatment severely impacts boiler life expectancy. Practical approaches are crucial for steam system longevity.

Steam system operation and maintenance

Throughout the steam system lifecycle from commissioning to decommissioning, proper operation and maintenance practices are crucial for performance, reliability, safety, and longevity:

Startup and warmup

Steam system startup should gradually increase pressure and temperature over hours, not minutes. This allows slow expansion and warmup of piping and equipment to avoid damage from thermal stresses. Initially, condensate will be generated rapidly as cold system components gain heat. This starting load condensate must be drained frequently to avoid waterlogging.

Personnel should check carefully for leaks, malfunctions, vibrations, or other issues during warmup. Only after confirming the proper operation of all components should the system be allowed to reach normal operating parameters.

Normal operation

During normal steam system operations, water chemistry parameters like pH, conductivity, and dissolved solids should be tested routinely through grab samples and online analyzers. If chemistry exceeds limits, adjustments and additional blowdown may be required. Periodic blowdowns flush boiler tubes and remove concentrated, dissolved solids.

Steam traps should be checked frequently for proper operation to avoid wasting steam and condensate. Operators should log key operating parameters and listen/watch closely for any unexpected changes that could indicate emerging problems. Unexpected pressure, temperature, or level deviations must be investigated and resolved promptly to avoid more significant issues.

Shutdown and layup

As with startup, steam system shutdown should be done in a controlled stepwise manner over hours and days, not hastily in just minutes or hours. The boiler load is gradually reduced, and once steam flow ceases. The boiler should be blown down while still hot to flush accumulated solids and impurities.

Steam distribution lines are often pigged and then dried thoroughly. Condensate is removed from the system by draining traps. Equipment is then isolated with blinds or valves and adequately preserved for shutdown periods. For extended outages, vessels are kept full of treated water. You can temporary corrosion inhibition methods may be used for piping and steam traps.

Conclusion

This guide comprehensively overviews industrial steam system engineering, operation, and maintenance. Steam remains a highly effective utility for distributing heat energy and power across extensive facilities. Following sound design principles and diligent maintenance practices. It can current and future steam systems to operate efficiently, economically, and safely over decades of service. With strategic system upgrades and diligent care, steam systems can viably support manufacturing processes and plant services for the foreseeable future.
