Vertical normal pressure hot water boiler

Our boilers are available with a range of fuel options including biomass, solid fuel, gas, liquid fuel and electricity. Respected for our mechanical and project engineering capabilities, we provide comprehensive design, fabrication, installation, and commissioning services to a broad range of industry sectors.

Contact our sales experts

Free customization of boilers of different specifications
Low operating pressure, low operating cost
Up to 15% less energy usage due to low operation pressure and lacking of moving parts
Up to 90% reduced wafer consumption due to use of filtrate in filfer back washe

Parameter

Thermal capacity : 0.06 - 0.7 Mw
Rated thermal efficiency : ≥95%
Pressure : normal pressure
Available industries : Central heating, hospitals, hotels, hotels, apartments, villas, schools, etc.

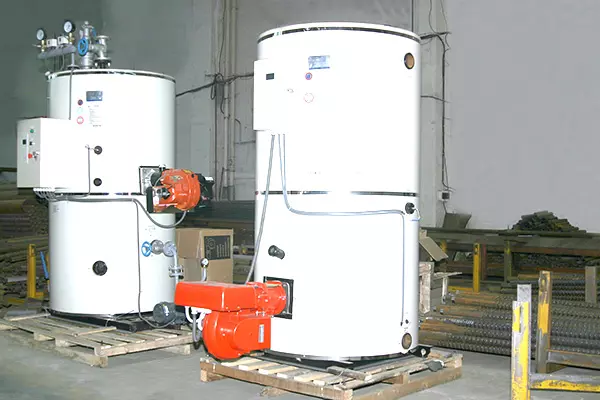

Vertical normal pressure hot water boiler

Introduction

This boiler is divided into heating type, dual-purpose type, warm water type (galvanized), and stainless steel liner type. The furnace body design is optimized, with large heating area, high thermal efficiency, fast heating and sufficient hot water supply. Equipped with high-quality burners, the fuel is fully burned and the noise is low.

Advantages

The furnace body design is optimized, with large heating area, high thermal efficiency, fast heating and sufficient hot water supply. Equipped with high-quality burners, the fuel is fully burned and the noise is low.
It adopts a new generation of intelligent computer controller with complete functions. It has multiple protection functions such as overheating protection, water shortage protection, and self-checking functions, making it safe and reliable.
high degree of automation. It has automatic control functions such as automatic water replenishment, combustion, temperature, and circulation control, and has rich status displays.
The appearance is novel, the color is bright and elegant. The overall layout is compact, takes up less space, and is easy to install.

Vertical normal pressure hot water boiler

Model		Unit	CLHS 0.06-85/ 65-Y(Q)	CLHS 0.08-85/ 65-Y(Q)	CLHS 0.12-85/ 65-Y(Q)	CLHS 0.175-85/ 65-Y(Q)	CLHS 0.24-85/ 65-Y(Q)	CLHS 0.35-85/ 65-Y(Q)	CLHS 0.48-85/ 65-Y(Q)	CLHS 0.7-85/ 65-Y(Q)
Reted Heat Capacity		MW	0.06	0.08	0.12	0.175	0.24	0.35	0.48	0.7
Working Pressure		Mpa	normal pressure
Output Water Temp		℃	85
Nput Water Temp		℃	65
Thermal Efficiency		%	90
Water Volume		L	140	186	250	310	420	660	660	1400
Water Outlet		DN	50	50	50	65	65	80	80	100
Water Inlet		DN	50	50	50	65	65	80	80	100
Vave		DN	50	50	50	65	65	80	80	100
Electric Consumption		Kw/h	0.3	0.3	0.4	0.65	0.8	1	1	3.3
Chimney		mm	159	219	219	219		219	219	300
Dimensions	Length	mm	640	750	750	800	910	1060	1075	1400
	Width	mm	640	750	750	800	910	1060	1075	1400
	Height	mm	1320	1330	1560	1650	1770	1940	1980	2600
Base Dimensions		mm	640×640	750×750	750×750	800×800	910×910	1060×1060	1160×1160	1400×1400
Transport Weight		kg	291	335	363	433	569	830	910	1274
Fuel Consumption	Diese	kg/h	5.6	7.5	11.3	16.4	22.5	32.8	52.1	65.7
	Natural gas	Nm³/h	6.6	8.86	13.2	19.4	26.6	38.8	42.2	77.5
	C.G	Nm³/h	13.2	17.7	26.4	38.8	53.2	77.6	106.4	155
Transporation Dimension	Length	mm	710	795	805	860	975	1130	1135	1470
	Width	mm	730	730	730	894	1010	1150	1135	1500
	Height	mm	1325	1325	1562	1652	1771	2001	2021	2331

*The above data are for reference only. For specific information, please refer to the actual product and product manual. Unless otherwise specified, the right to interpret the data involved in this website belongs to DABONN.

*For other model details, please contact us.
